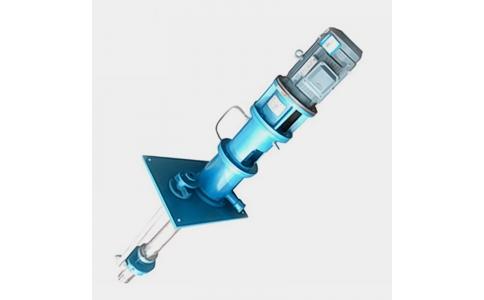

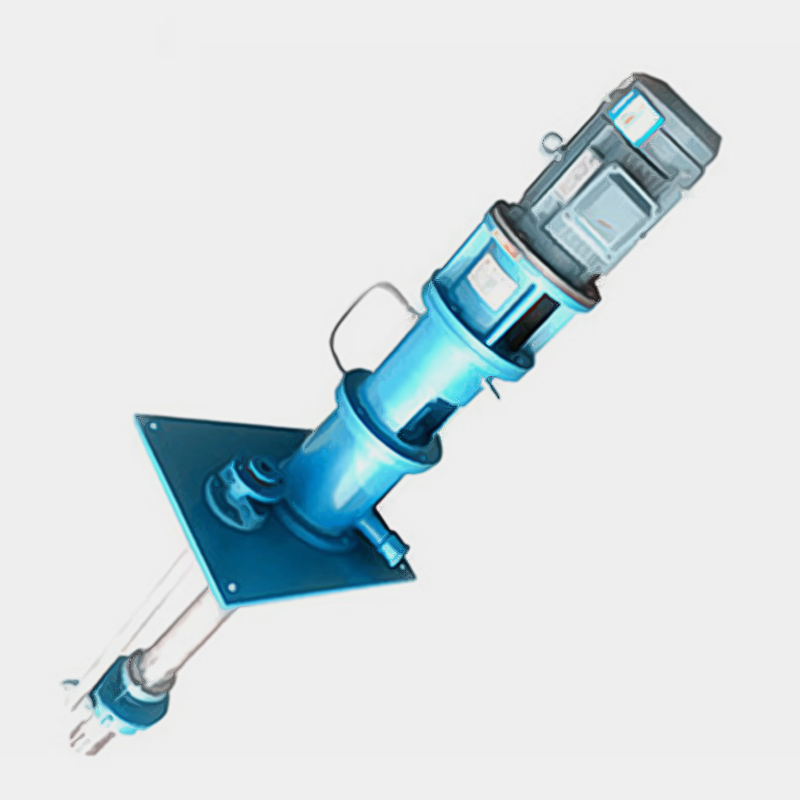

高溫液下泵，可耐550度高溫。
GFY高溫液下泵性能參數表
型號 | 泵額定轉速n=2900r/min | 泵額定轉速n=1450r/min | ||||
流量Q | 揚程H | 電機功率 | 流量Q | 揚程 | 電機功率 | |
25GFY-25 | 3.6 | 25 | 2.2 | 1.6 | 6 | 0.75 |
25GFY-41 | 3.6 | 41 | 4 | 1.6 | 10 | 1.5 |
25GFY-50 | 3.2 | 50 | 5.5 | 1.6 | 12.5 | 1.5 |
25GFY-80 | 3.2 | 80 | 11 | 1.6 | 20 | 2.2 |
40GFY-16 | 7.2 | 16 | 2.2 | 3.6 | 4 | 1.1 |
40GFY-26 | 7.2 | 26 | 3 | 3.6 | 5 | 1.1 |
40GFY-40 | 7.2 | 40 | 4 | 3.6 | 10 | 1.5 |
40GFY-50 | 6.3 | 50 | 5.5 | 3.2 | 12.5 | 1.5 |
40GFY-80 | 6.3 | 80 | 11 | 3.2 | 20 | 2.2 |
50GFY-25 | 14.4 | 25 | 4 | 7.2 | 6 | 1.5 |
50GFY-40 | 14.4 | 40 | 7.5 | 7.2 | 10 | 2.2 |
50GFY-50 | 12.5 | 50 | 7.5 | 6.3 | 12.5 | 2.2 |
50GFY-80 | 12.5 | 80 | 15 | 6.3 | 20 | 3 |
65GFY-25 | 28.8 | 25 | 5.5 | 14 | 6 | 1.5 |
65GFY-40 | 28.8 | 40 | 11 | 14 | 10 | 3 |
65GFY-50 | 25 | 50 | 11 | 12.5 | 12.5 | 3 |
65GFY-80 | 25 | 80 | 18.5 | 12.5 | 20 | 3 |
65GFY-125 | 25 | 125 | 30 | 12.5 | 32 | 5.5 |
80GFY-15 | 54 | 15 | 5.5 | 27 | 4 | 0.75 |
80GFY-24 | 54 | 24 | 11 | 27 | 6 | 1.1 |
80GFY-38 | 54 | 38 | 15 | 27 | 9 | 1.5 |
80GFY-50 | 50 | 50 | 22 | 25 | 12.5 | 2.2 |
80GFY-80 | 50 | 80 | 30 | 25 | 20 | 4 |
80GFY-125 | 50 | 125 | 45 | 25 | 32 | 7.5 |
100GFY-23 | 100 | 23 | 11 | 50 | 5 | 2.2 |
100GFY-37 | 100 | 37 | 15 | 50 | 9 | 3 |
100GFY-50 | 100 | 50 | 30 | 50 | 12.5 | 4 |
100GFY-80 | 100 | 80 | 45 | 50 | 20 | 7.5 |
100GFY-125 | 100 | 125 | 75 | 50 | 32 | 11 |
125GFY-50 | 200 | 50 | 45 | 100 | 12.5 | 7.5 |
125GFY-80 | 200 | 80 | 75 | 100 | 20 | 15 |
125GFY-125 | 200 | 125 | 132 | 100 | 32 | 18.5 |
150GFY-20 | 200 | 20 | 30 | |||
150GFY-32 | 200 | 32 | 45 | |||
150GFY-50 | 200 | 50 | 55 | |||
200GFY-20 | 400 | 20 | 45 | |||
200GFY-32 | 400 | 32 | 75 | |||
200GFY-50 | 400 | 50 | 90 | |||
